Lighting calculation and installation of KRAFT Led

In the "Dialux" program, we determine the optimal number and placement of lamps. If you do not have the opportunity to calculate the lighting in the program, then you should proceed from approximate values: one set of KRAFT LED lamps is designed to illuminate 8-10 square meters. m of premises with a height of 3.5 m and an area of up to 20 square meters. m and 10-12 square meters. m premises with an area of more than 20 square meters. m. In this case, evenly distribute the lamps throughout the room.

In the "Dialux" program or on the room plan, we indicate the location of the lamps. We will use this scheme during the installation process.

LED profile T-LED is mounted in the desired location of the suspended ceiling design instead of the standard T-profile 600 or 1200 mm.
Wires for connection have already been put into the ceiling area. It remains only to connect the kit to the driver.

To install the G-LED profile, first mark its position on the structure. If necessary, drill holes for the output of wires. Then remove the red protective strip from the back side of the profile, take the wires out into the ceiling area and glue the profile to the surface of the open cell grilyato profile or rail.

The K-Led lamp driver is hidden directly inside the rail. Thanks to the new type of mounting, such lamps can be mounted either directly to the ceiling or on any hangers, including their own wires.

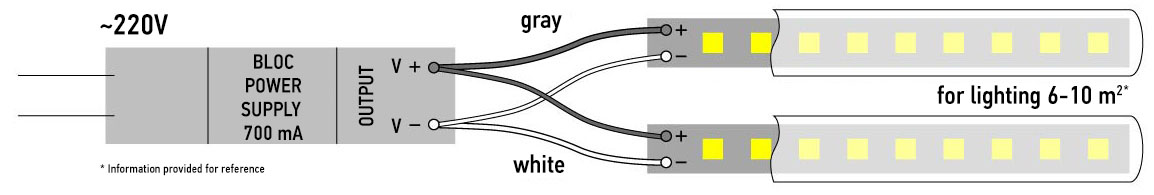

After the LED profiles are installed, we connect them to the power supply according to the wiring diagram. Drivers can be placed at any distance from the luminaires and carried to a convenient or specially designed place.
